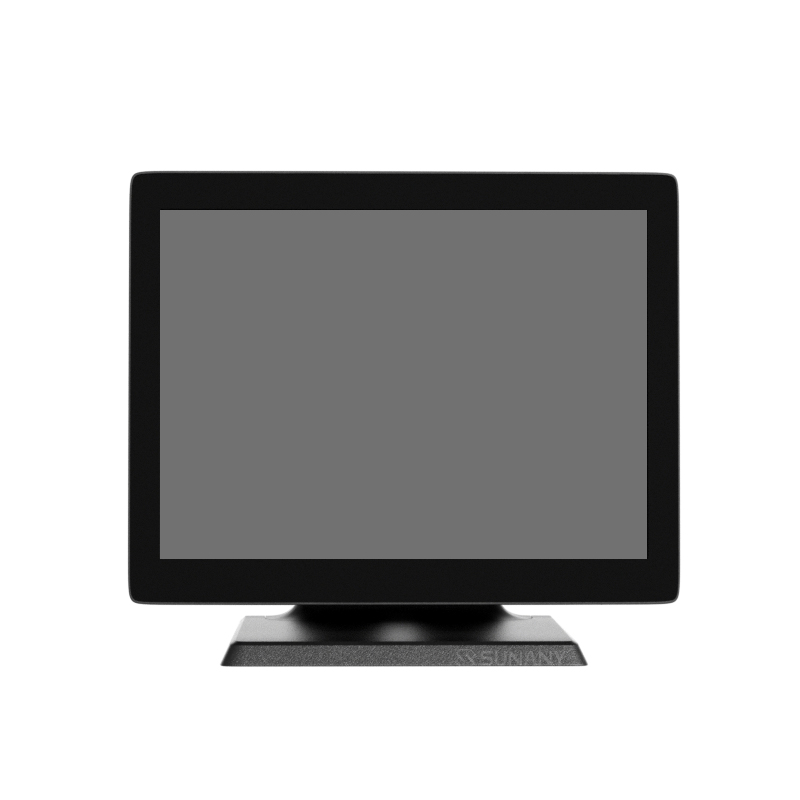

1. Classical 15” main display, 1024*768 resolution, 4:3, capacitive 10 points touch screen.
2. Supports LED or VFD customer display for optional.
3. Supports Android 6.0/ Android 7.1/ Android 8.1, Google play is pre-installed.
| Model | L100-15A |
| Operation System | Android 6.0/ Android 7.1/ Android 8.1 (Google play is pre-installed) |
| On board CPU | RK3288 Quad-Core Cortex-A17 1.8GHz (RK3399 optional) |
| RAM (DDR3) | 2GB (4GB optional) |
| ROM (eMMC) | 16GB (8GB/ 32GB optional) |
| Main Display | 15 inch LCD, 1024*768, 4:3 |
| 12.1 inch LCD, 1280*800, 16:10 (optional) | |
| 15.6 inch LCD, 1920*1080, 16:9 (optional) | |
| 17.3 inch LCD, 1920*1080, 16:9 (optional) | |
| Touch Panel | Capacitive 10 point touch, ILITEK 2511 controller |
| Customer Display | Be without |
| LED customer display, 8 Segment LED (optional) | |
| VFD customer display, 2 lines* 20 columns (optional) | |
| Speakers | 8Ω 2W* 2 |
| Network | Ethernet 100M/1000M adaptive |
| Wi-Fi IEEE802.11b/g/n | |
| Bluetooth 2.0/ 3.0/ 4.0 | |
| Interfaces | USB 2.0* 2 (on the left side of screen) |
| USB 2.0* 2 (on the right side of screen) | |
| USB 2.0* 4 (on the bottom of screen) | |
| COM (RS232)* 2 | |
| RJ45 (Ethernet)* 1 | |
| RJ11 (Cash drawer)* 1 | |
| SIM card slot | |
| TF card solot, supports up to 32GB | |
| Mic-in* 1 | |
| Audio-out* 1 | |
| Packing Info | Net weight: 4.2kg |
| Gross weight: 5.5kg | |
| Packing size: 49*18*39cm | |
| Optional functions | 4G LTE, FDD LTE or HDD LTE |
| 1-2-3 tracks magnetic stripe card reader | |
| RFID card reader, supports 13.56MHz & 125KHz | |
| i-button |
Q: Could you provide technical support if we have problem of operation?
Re: Yes, we will provide online technical support.
Q: What is a thermal printer?
Re: A thermal printer is a printer that makes use of heat in order to produce the image on paper
Q: What are the differences between Sunany J series and L series POS hardware?
Re: Both series POS hardwares are almost the same and just come with a different stand. The stand of the L series will be more sturdy than J series, but the stand of the L series is shorter than J series. It is recommended to choose which one according to your application environment.
Q: What is an SSD?
Re: A Solid State Drive (more commonly referred to as an SSD), it is a data storage device that uses integrated circuits to store persistent data
Q: May I have your product catalog?
Re: Yes, welcome to send email to info@sunany.com about your inquiry, we will send you the POS catalog for reference.
Q: Would you provide SDK to me?
Re: Yes, we will offer free SDK after you placed order.
Q: What is eMMC?
Re: eMMC is mbedded MMC, it is an embedded non-volatile memory system,comprised of both flash memory and a flash memory controller integrated on the same silicon die
Q: Which countries are the products exported to?
Re: We have exported our products to Europe, North America, Middle-east, Africa, Asia, and other countries.
